Components Location

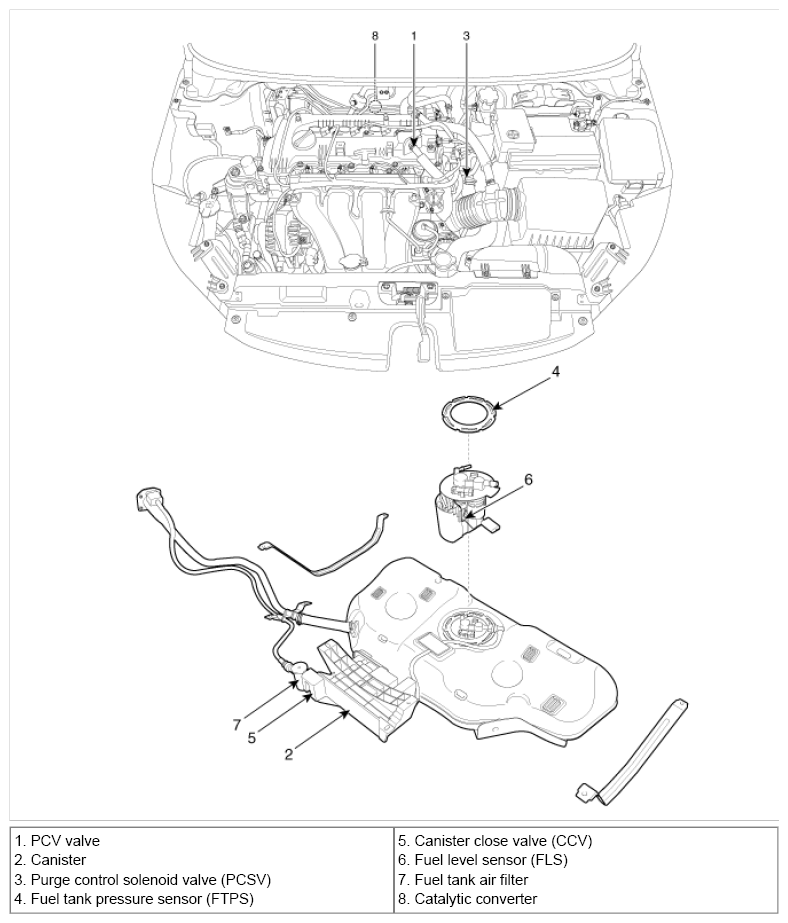

Fig 1: Identifying Emission Control System Components (1 Of 2)
G07263970Courtesy of HYUNDAI MOTOR CO.

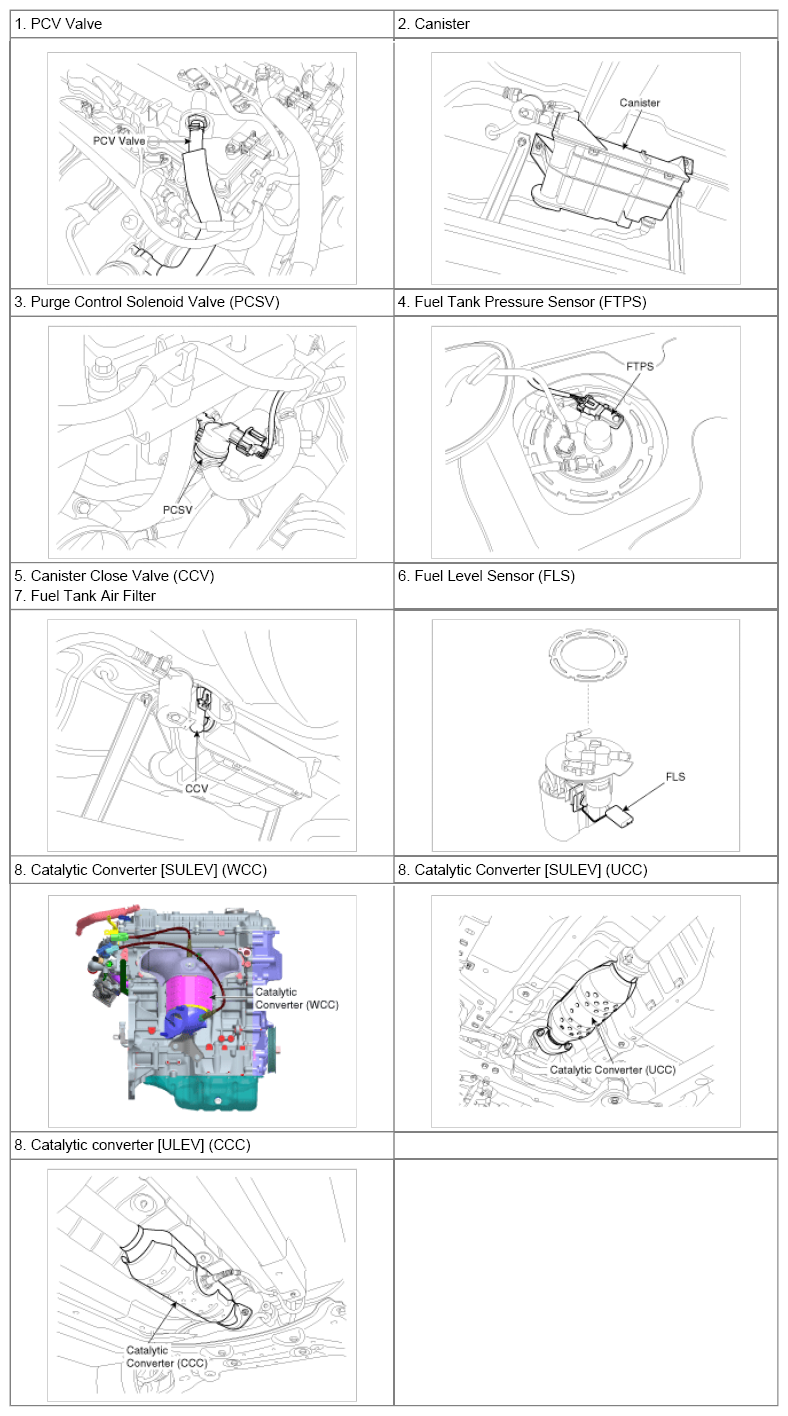

Fig 2: Identifying Emission Control System Components (2 Of 2)
G07263971Courtesy of HYUNDAI MOTOR CO.
