Elantra GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Smart Key Unit
>>
DTC B1602: CAN Error
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data

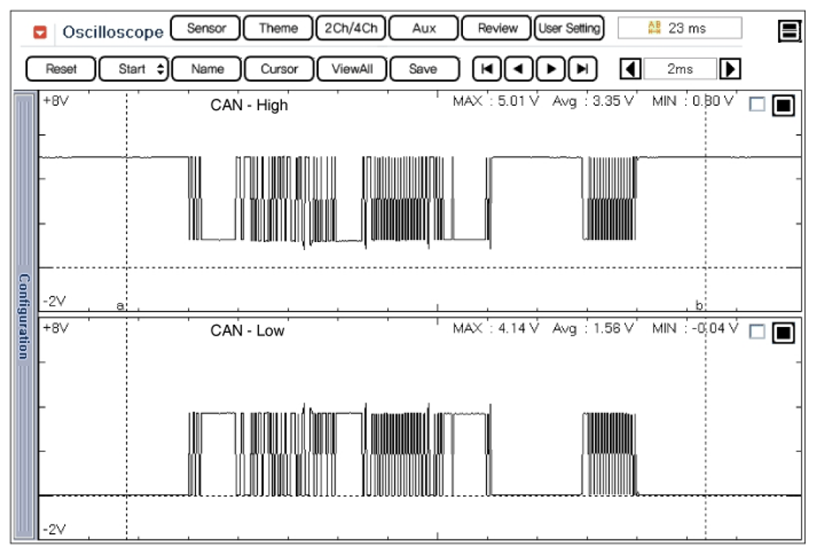

Fig 1: Screen Display - Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
