Elantra GLS, Automatic Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Smart Key Code Saving (Button)
>>
DTC P1676: Immobilizer-Smartra Message Error
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

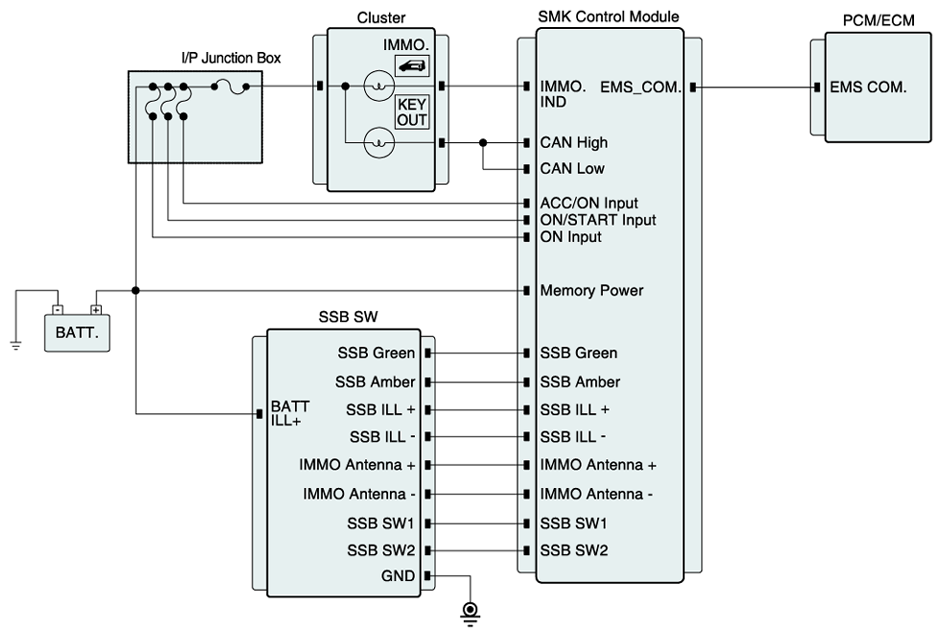

Fig 1: Smart Key Unit And PCM/ECM - Diagnostic Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

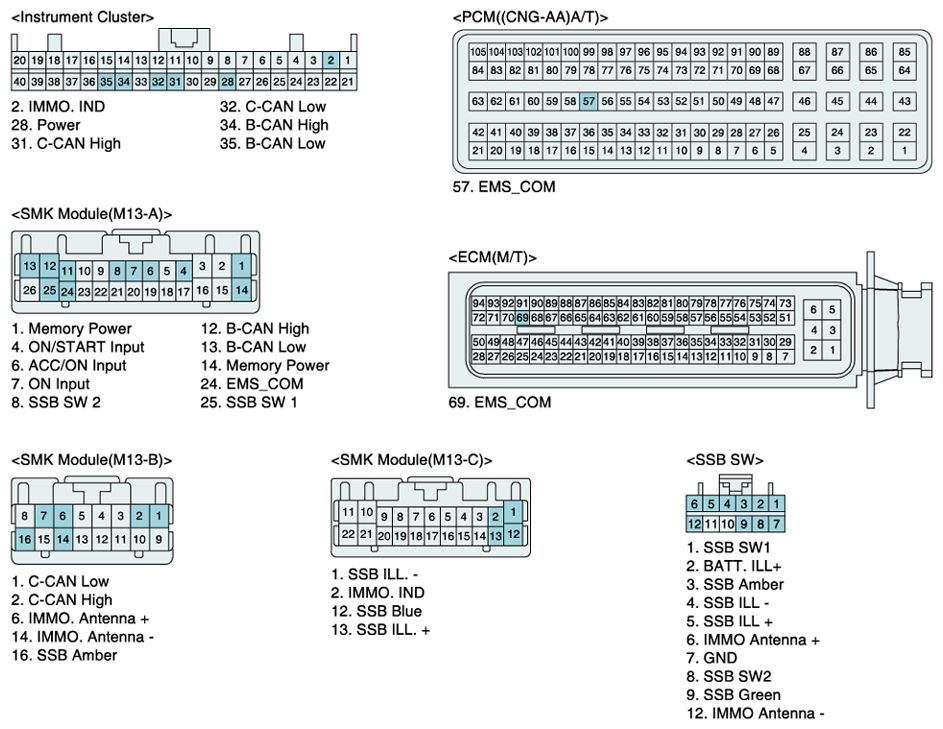

Fig 2: Smart Key Unit And PCM/ECM - Diagnostic Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
