Circuit Diagram

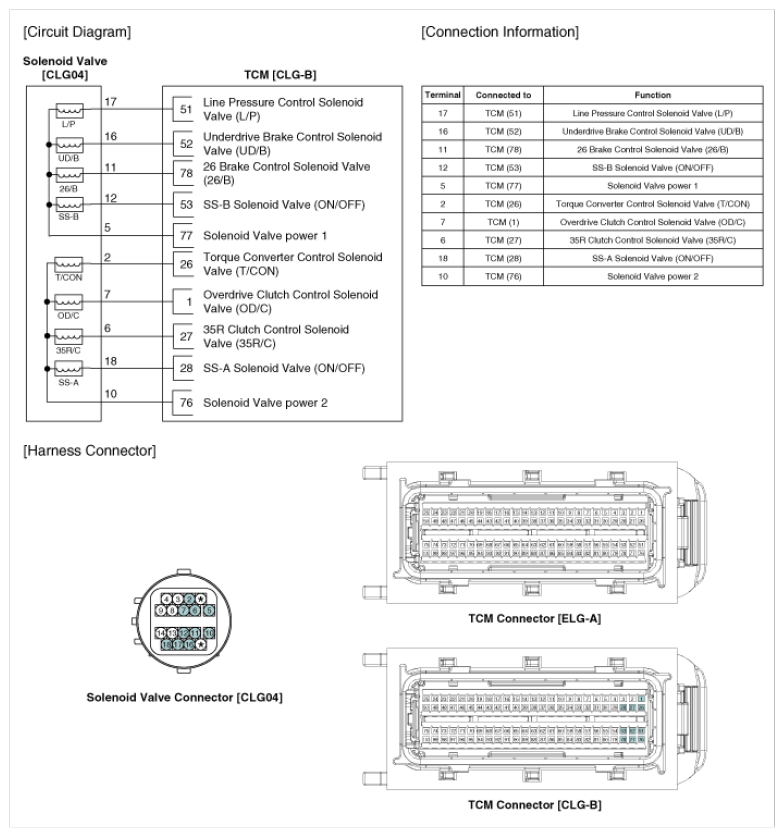

Fig 1: SS-B Solenoid Valve Circit Diagram (ON/OFF)
G08809970Courtesy of HYUNDAI MOTOR AMERICA
