Smart Junction Box Connector End View (I/P-D)

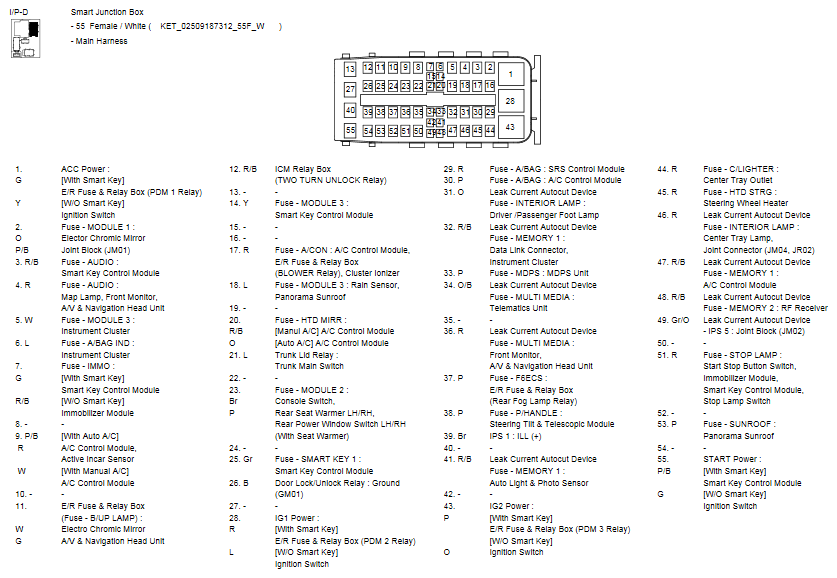

Fig 1: Smart Junction Box Connector End View (I/P-D)

G10775198

Courtesy of HYUNDAI MOTOR AMERICA
