Data Link Connector End View (M05)

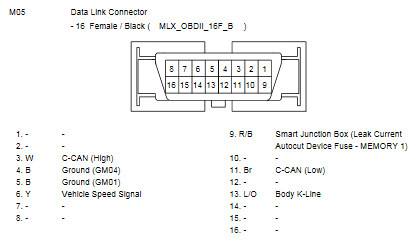

Fig 1: Data Link Connector End View (M05)

G10774876

Courtesy of HYUNDAI MOTOR AMERICA
