Lumbar Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat side cover (A).

    (Refer to "FRONT SEAT BACK COVER ")

    Fig 1: Identifying Seat Side Cover
    G08814302Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the lumbar switch connector (A).

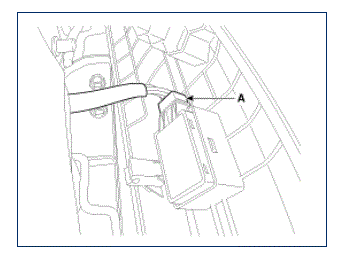

    Fig 2: Identifying Lumbar Switch Connector
    G08814303Courtesy of HYUNDAI MOTOR AMERICA
