Circuit Diagram

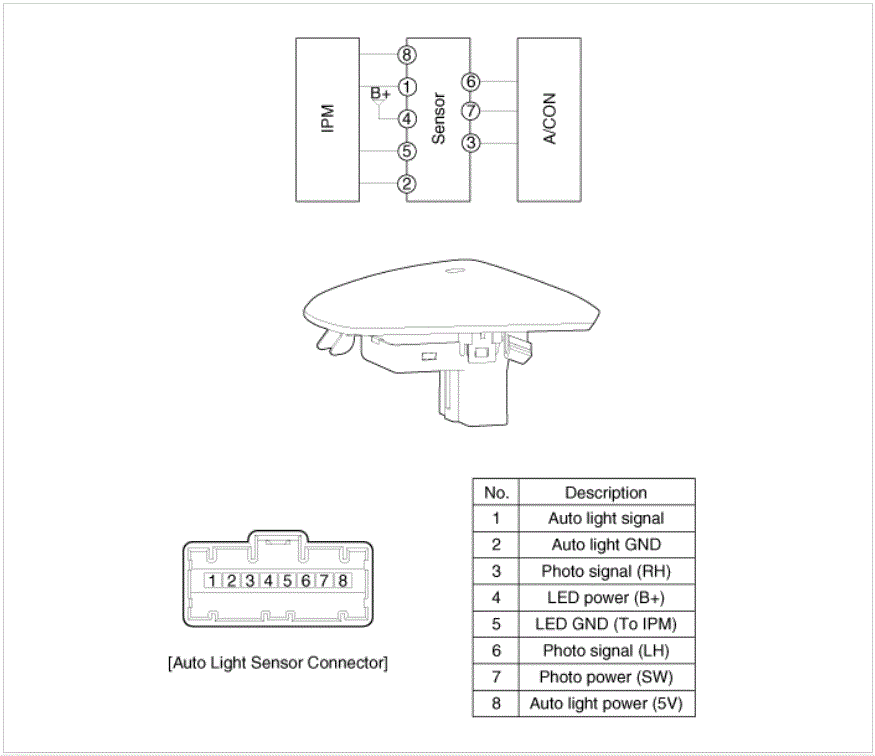

Fig 1: Auto Lighting Control System - Circuit Diagram

G08814610

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: For additional wiring information, refer to SYSTEM WIRING DIAGRAMS article.
