Circuit Diagram

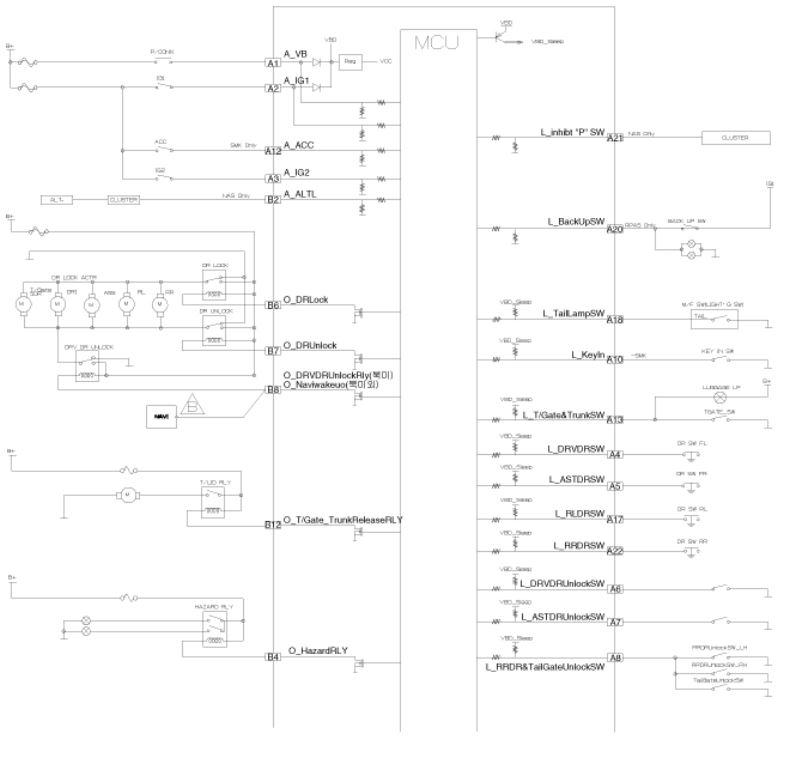

Fig 1: Body Control Module - Circuit Diagram (1 Of 2)
G08803321Courtesy of HYUNDAI MOTOR AMERICA

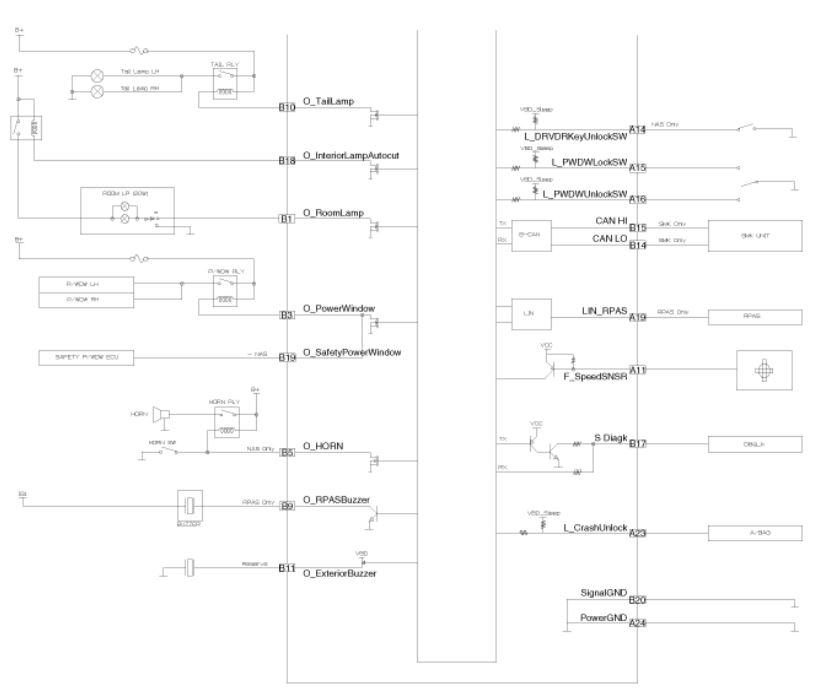

Fig 2: Body Control Module - Circuit Diagram (2 Of 2)
G08803322Courtesy of HYUNDAI MOTOR AMERICA
NOTE: For wiring diagram information, refer to BODY CONTROL MODULES for 2012 models, or refer to BODY CONTROL MODULES for 2013 models.
