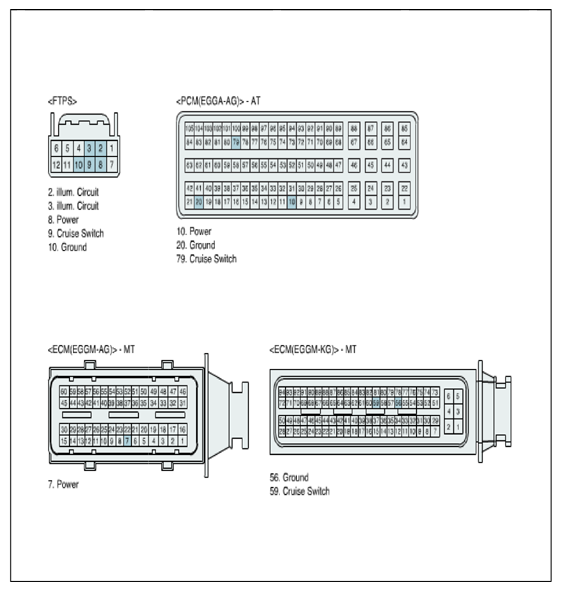

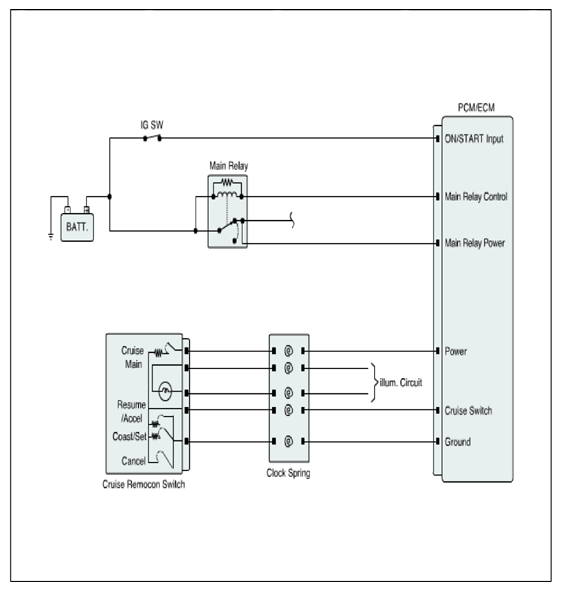

Home >> Hyundai >> 2012 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC P0564: Cruise Control Multi-Function Input A Circuit >> General Information >> Diagnostic Circuit Diagram
