Circuit Diagram: (M/T)

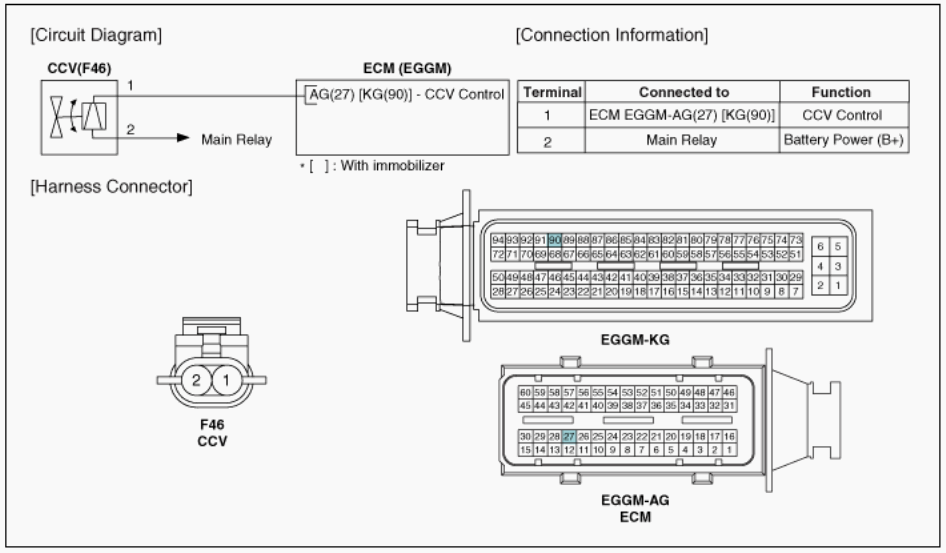

Fig 1: Canister Close Valve - Circuit Diagram (M/T)

G08804505

Courtesy of HYUNDAI MOTOR AMERICA
