Home >> Hyundai >> 2011 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> General Information - Restraints - From 12-1-2010 >> Components and Components Location >> Components >> Notes

Components and Components Location: Components: Notes

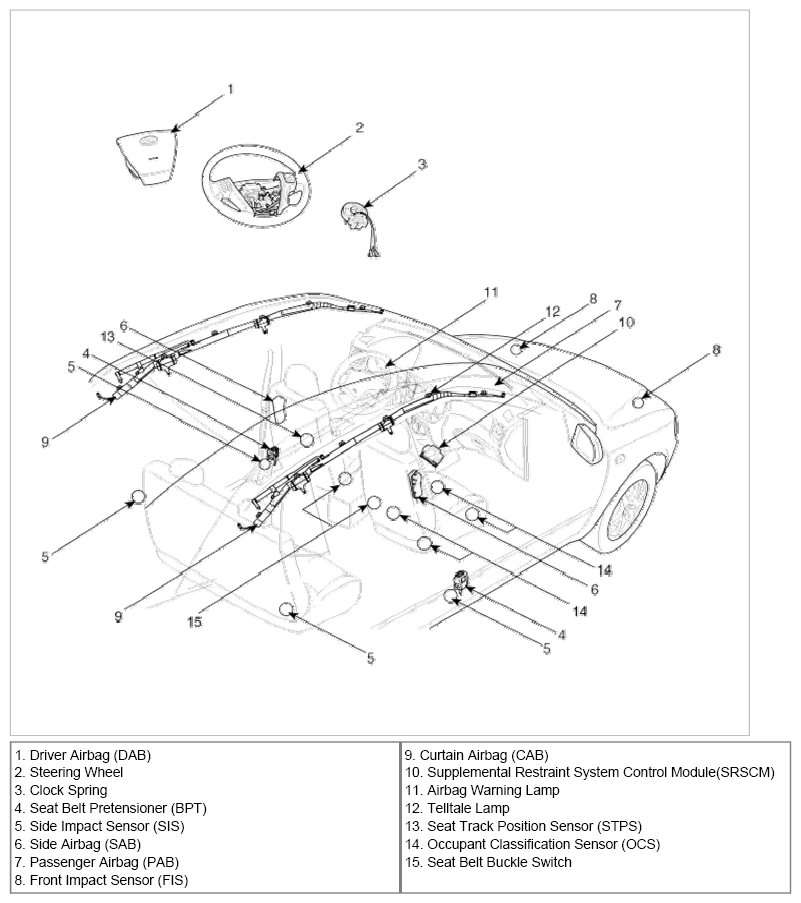

Fig 1: Identifying SRS System Components

G06857562

Courtesy of HYUNDAI MOTOR CO.
