Circuit Diagram (1): Notes

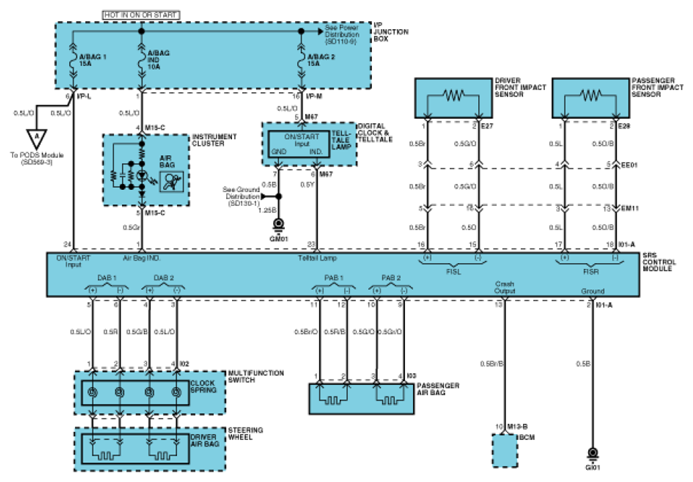

Fig 1: Identifying Supplemental Restraints System Control Module (SRSCM) Circuit Diagram (1 Of 3)

G06844363

Courtesy of HYUNDAI MOTOR CO.
