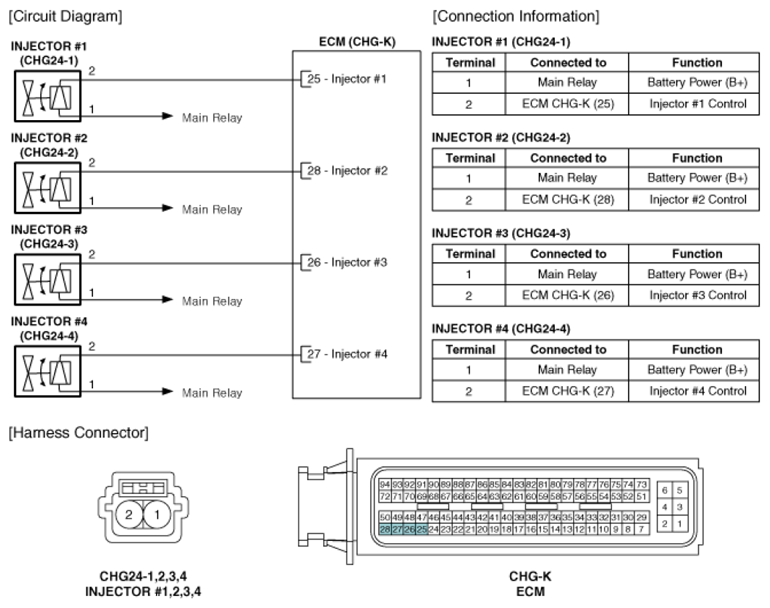

Home >> Hyundai >> 2011 >> Santa Fe GLS, 2.4 B, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - G2.4 DOHC >> Injector >> Schematic Diagrams >> Circuit Diagram
