Engine Control System (Fuel System (G8BA - GSL 4.6L))
>>
Purge Control Solenoid Valve (PCSV)
>>
Circuit Diagram
Circuit Diagram

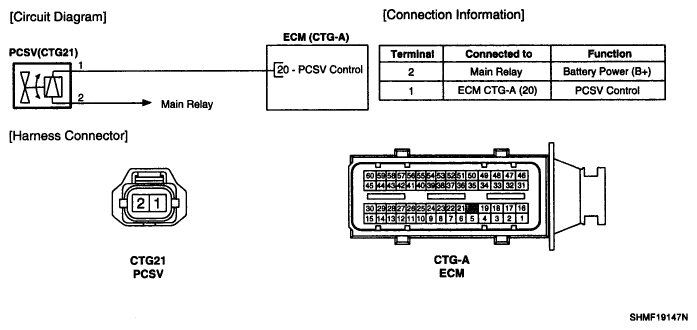

Fig 1: Purge Control Solenoid Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
