Home >> Hyundai >> 2011 >> Genesis 3.8 >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System - Tb-65/60N >> Shift Lever >> Components

Shift Lever: Components

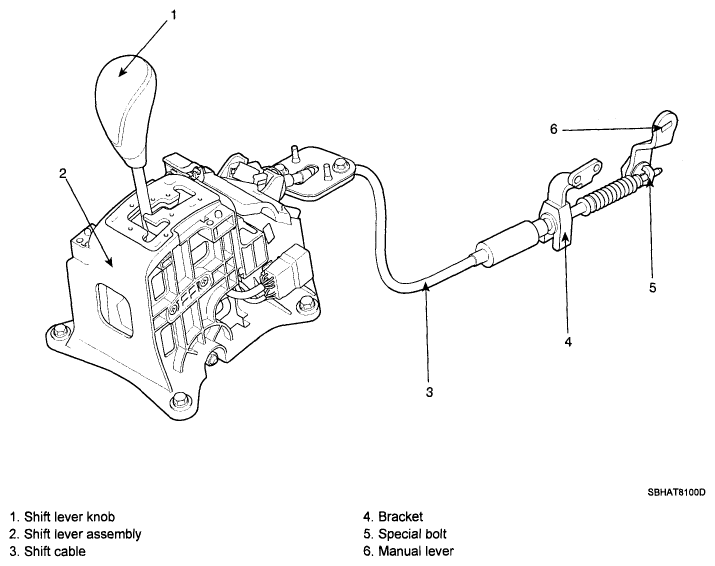

Fig 1: Identifying Shift Lever Components

G06106412

Courtesy of HYUNDAI MOTOR CO.
