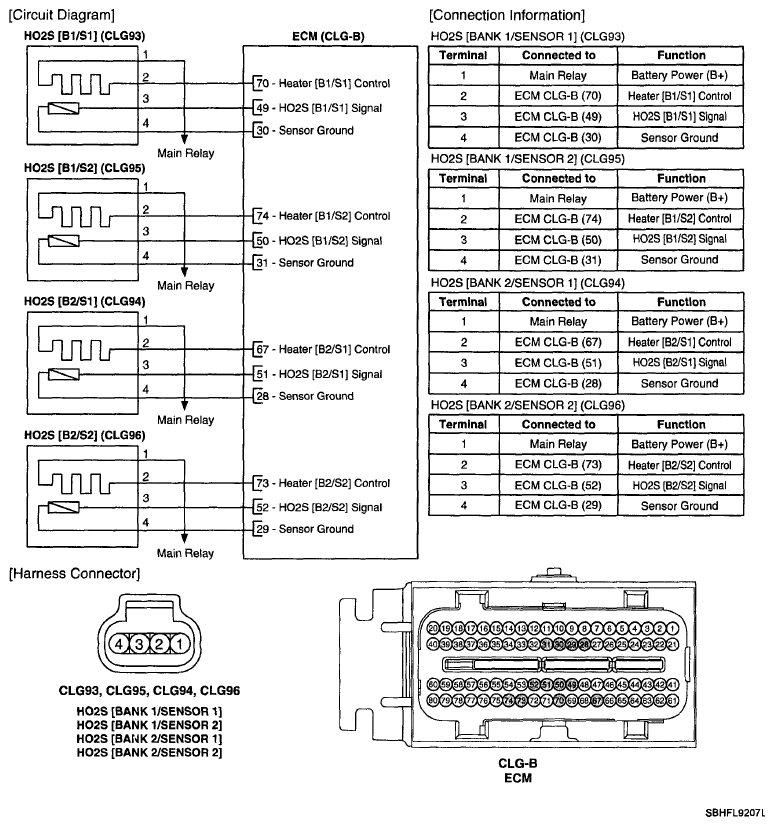

Home >> Hyundai >> 2011 >> Genesis 3.8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (G6DB/G6DA - GSL 3.3L/3.8L)) >> Heated Oxygen Sensor (HO2S) >> Circuit Diagram
