[CVVT Oil Control Valve (Intake)]

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the intake manifold (Refer to INTAKE AND EXHAUST SYSTEM (ENGINE (G6DB/G6DA - GSL 3.3/3.8)) ).
  3. Disconnect the CVVT oil control valve connector (A).

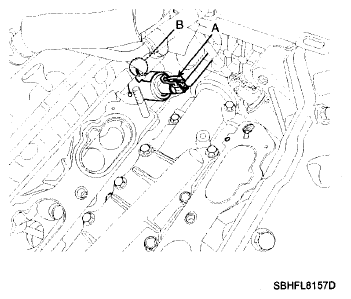

    Fig 1: Identifying CVVT Oil Control Valve Connector
    G06106170Courtesy of HYUNDAI MOTOR CO.
  4. Remove the mounting bolt (B), and then remove the valve from the engine.
