Control Circuit Inspection

Check Short To Battery In Harness
1. IG "OFF" & Disconnect OCV connector.
2. IG "ON".
3. Measure voltage between control terminal of OCV harness connector and chassis ground.
  Specification: Approx. 3.2V

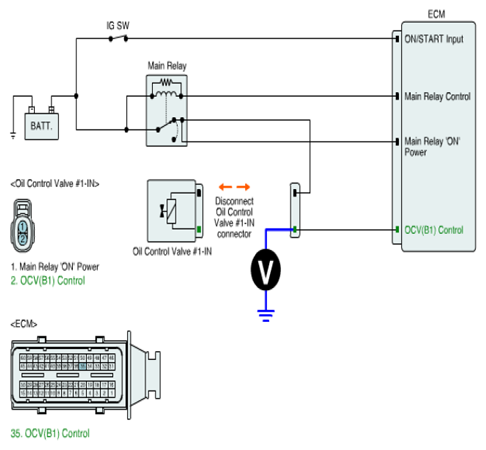

  Fig 1: Measuring Voltage Between Control Terminal Of OCV Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured voltage within specification?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair short to battery in OCV control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
