Component Inspection

Check OCV resistance
1. IG "OFF" and disconnect OCV connector.
2. Measure resistance between power and signal terminals of OCV. (Component Side)
  Specification: 6.7 ~ 7.7 Ω

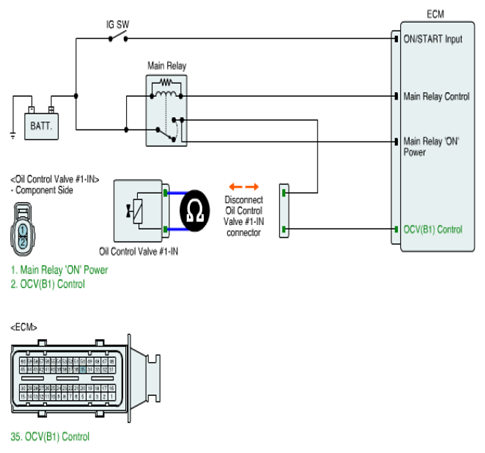

  Fig 1: Measuring Resistance Between Power And Signal Terminals Of OCV
  Courtesy of HYUNDAI MOTOR CO.
3. Is the measured resistance within specification?
  YES
  - Go to "OCV Actuation Test " as follows.
  NO
  - Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
OCV Actuation Test
1. Connect GDS and IG "ON".
2. Select "OIL CONTROL VALVE" on the Actuation Test.
3. Activates "OIL CONTROL VALVE" by pressing "START" button.
  (Should hear a faint click from Oil Control solenoid Valve)
4. Repeat this procedure 4 or 5 times to ensure oil control solenoid valve reliability.

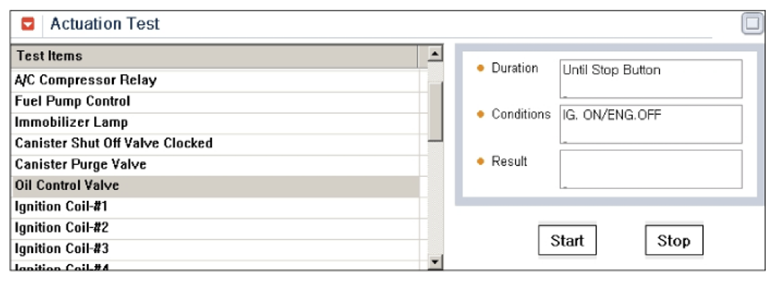

  Fig 2: Screen Display - Actuation Test
  Courtesy of HYUNDAI MOTOR CO.
5. Does OCV generate click sound during actuation test?
  YES
  - Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known - good OCV and check for proper operation. If the problem is corrected, replace OCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
