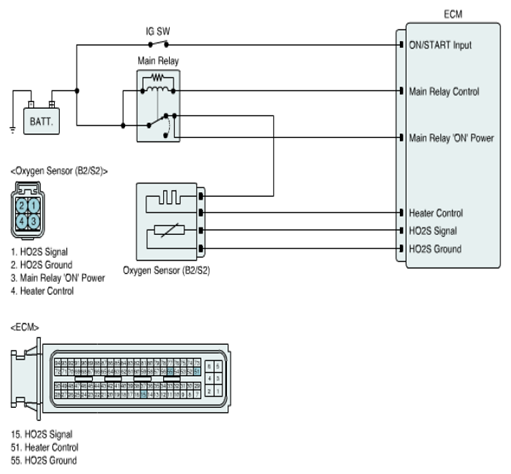

Home >> Hyundai >> 2011 >> Equus Signature >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) >> DTC P2273: O2 Sensor Stuck Rich - Bank2 Sensor 2 >> General Information >> Diagnostic Circuit Diagram
