Control Circuit Inspection

  1. With ignition OFF, disconnect alternator connector, and ECM connector.
  2. Measure the resistance between FR terminal of the alternator harness connector and chassis ground.

    Specification:  Infinite

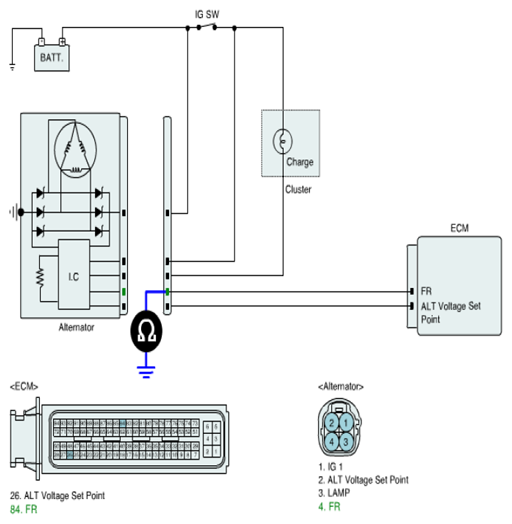

    Fig 1: Measuring Resistance Between FR Terminal Of Alternator Harness Connector And Chassis Ground
    G07306471Courtesy of HYUNDAI MOTOR CO.
  3. Is the measured resistance within specification?

    YES

    NO
