Monitor Scantool Data

  1. Connect scantool to Data Link Connector(DLC).
  2. IG "ON" & Engine "OFF".
  3. Select "Headrest Auto Adjust setting" in Inspection/Test option.
  4. Start Headrest Auto Adjust setting.

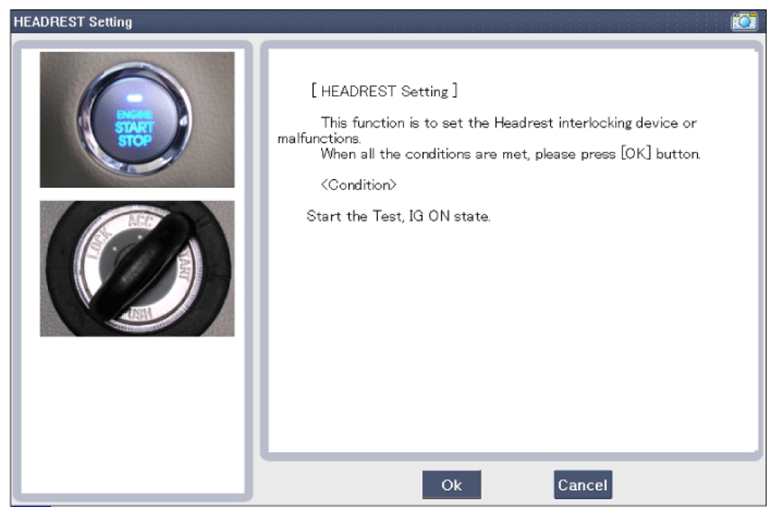

    Fig 1: Start Headrest Auto Adjust Setting In Inspection/Test Option During IG ON
    G07311187Courtesy of HYUNDAI MOTOR CO.

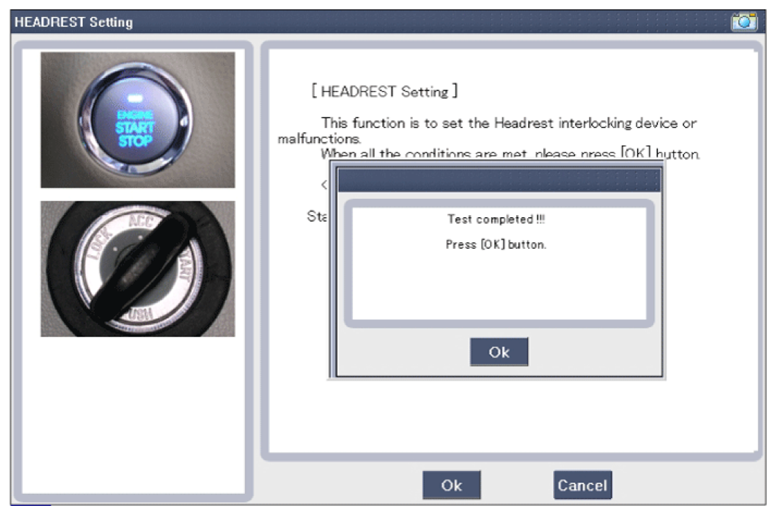

    Fig 2: Headrest Auto Adjust Setting Completed
    G07311188Courtesy of HYUNDAI MOTOR CO.
  5. Is Headrest Auto Adjust setting completed?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PSM's connector or was repaired and PSM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
