Circuit Diagram: (A/T)

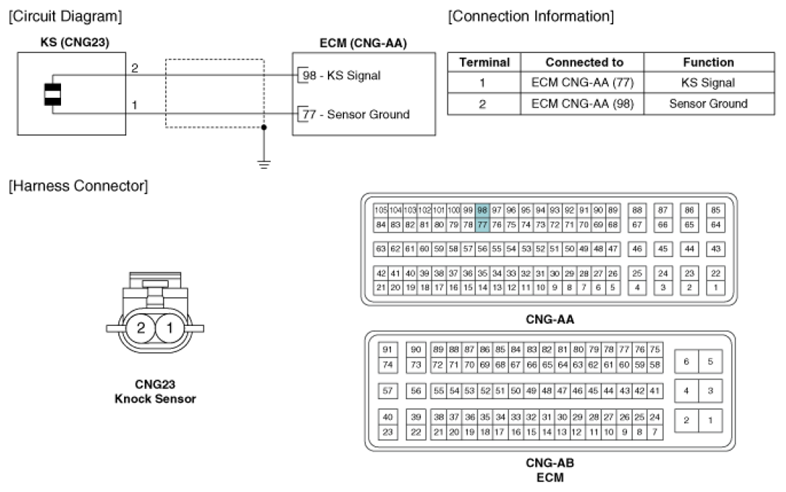

Fig 1: Knock Sensor (A/T) - Circuit Diagram

G07264077

Courtesy of HYUNDAI MOTOR CO.
