Monitor Scantool Data

  1. Connect GDS.
  2. IG "ON" and engine "OFF".
  3. Select "DTC Analysis" mode.
  4. After erase DTC, keep the vehicle condition within "the enable conditions"(Refer to "DTC DETECTING CONDITION " table)

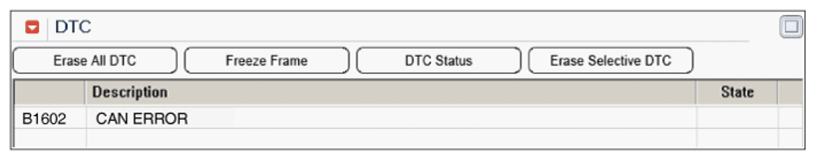

    Fig 1: Scantool Display - DTC
    G07257184Courtesy of HYUNDAI MOTOR CO.
  5. Is the same DTC occurred again?

    YES

    • Go to next procedure.

    NO
