Repair Procedures: Installation

Pressure Side Impact Sensor

1. Install the new pressure side impact sensor with the screws (B) then connect the pressure side impact sensor connector (A).

   Tightening torque:

   2.5 ~ 3.5 N.m (0.25 ~ 0.36 kgf.m, 1.8 ~ 2.6 lb-ft)

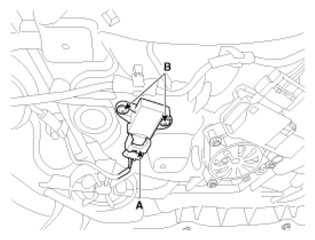

   Fig 1: Identifying Pressure Side Impact Sensor Connector

   Courtesy of HYUNDAI MOTOR CO.
   CAUTION:

   • Use the specified screws surely.
2. Install the front door trim.

   (Refer to the "FRONT DOOR ")

3. Reconnect the battery negative cable.
4. After installing the pressure side impact sensor, confirm proper system operation:
   1. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
      CAUTION:

      • You must comply with the specified tightening torques with the tool specified because Pressure - Side Impact Sensors (P-SIS) may be broken or POP-NUT may be rotated.
      • Problems may be occurred in the durability of P-SIS or impact sensing performance may be depreciated if POP-NUT is rotated.
      • The door module must not be transformed because SRSCM judges a impact through the pressure sensor in the door module.

Side Impact Sensor

1. Install the new side impact sensor with the bolt (A) then connect the side impact sensor connector (B).

   Tightening torque:

   7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

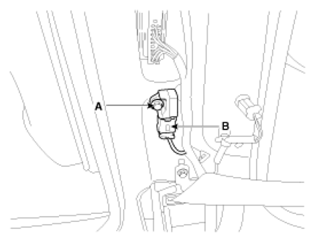

   Fig 2: Identifying Side Impact Sensor With Bolt

   Courtesy of HYUNDAI MOTOR CO.
2. Install the center pillar trim.

   (Refer to the "INTERIOR TRIM ")

3. Install the door scuff trim.

   (Refer to the "INTERIOR TRIM ")

4. Reconnect the battery negative cable.
5. After installing the Side Impact Sensor, confirm proper system operation:
   1. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
