Circuit Diagram

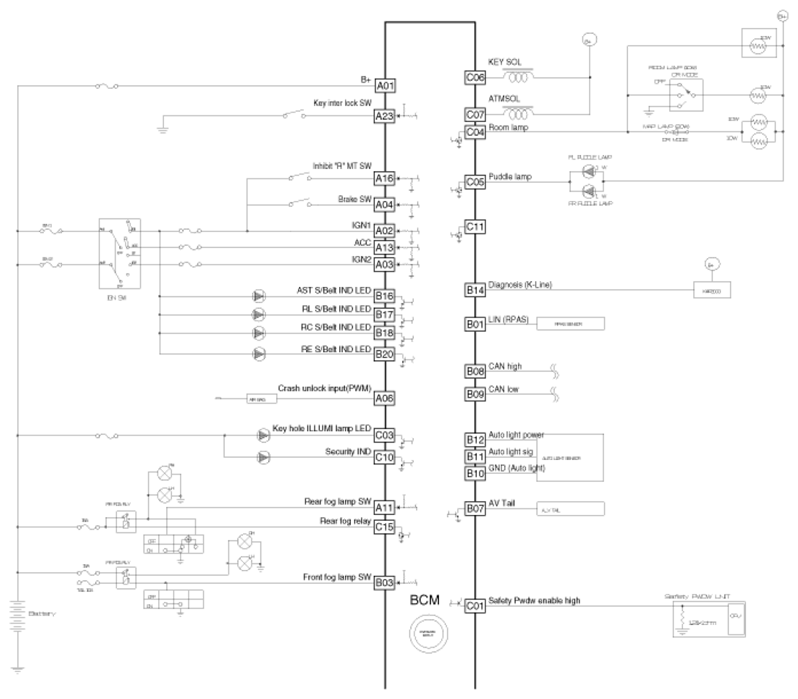

Fig 1: Body Control Module - Circuit Diagram (1 Of 2)

G07256585

Courtesy of HYUNDAI MOTOR CO.

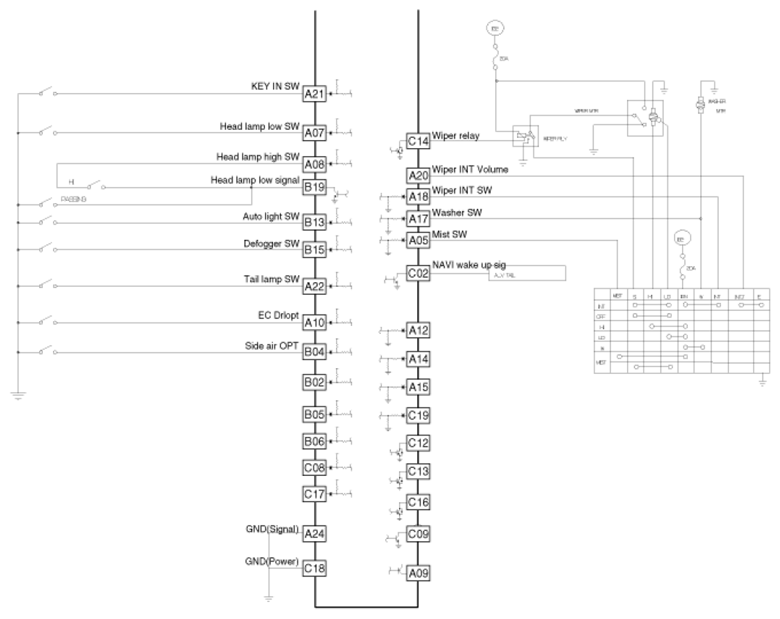

Fig 2: Body Control Module - Circuit Diagram (2 Of 2)

G07256586

Courtesy of HYUNDAI MOTOR CO.
