Delay Out Interior Lamp

• IGN1 off the door (Trunk excluded) will be lit to open the room lamp.
• Room lamp 4 Door closes, a 30-second delay will be lights out.
• 4 Door in closed IGN1 off & (Key in → Key out): 30-second delay will be lights out.

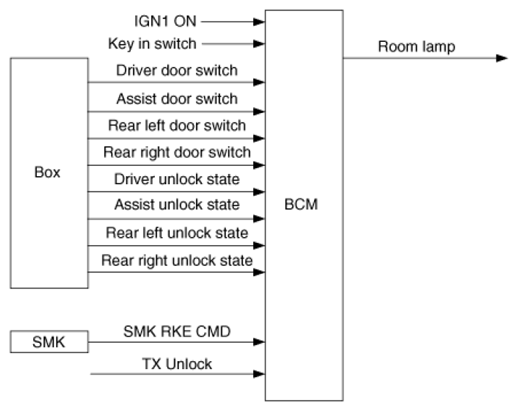

Fig 1: Decayed Room Lamp & Keyless Unlock Timer Data Flow Chart

Courtesy of HYUNDAI MOTOR CO.

□ TX UNLOCK: Include UNLOCK by KEYLESS or SMK

□ IGN KEY=IN->OUT

: IGN KEY=ON->OFF & ACC=ON->OFF & IGN1=ON->OFF & IGN2=ON->OFF

□ b_4DOORSW

: b_4DOORSW = ON (C_DRVDRSW=OPEN or C_ASTDRSW=OPEN or C_RLDRSW=OPEN or C_RRDRSW=OPEN)

: b_4DOORSW = OFF (C_DRVDRSW=CLOSE & C_ASTDRSW=CLOSE & C_RLDRSW=CLOSE & C_RRDRSW=CLOSE)
