Components and Components Location: Components

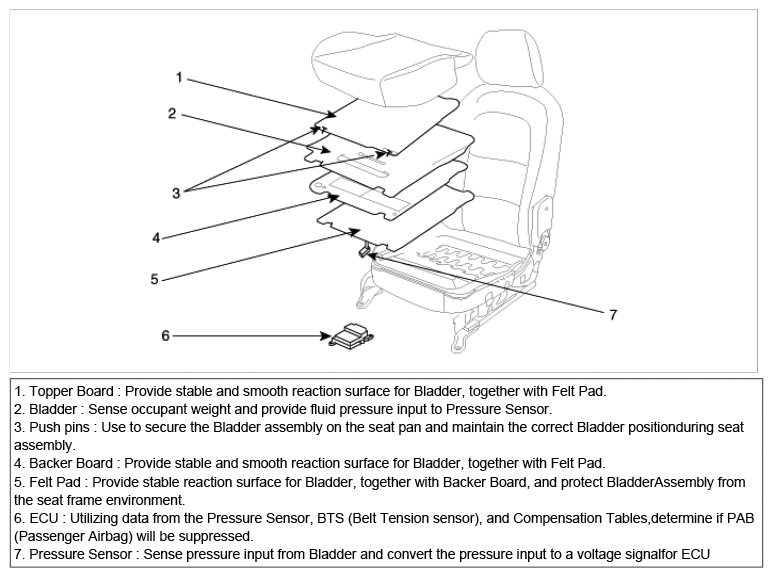

Fig 1: Identifying Seat Components

G06801922

Courtesy of HYUNDAI MOTOR CO.
