Repair Procedures: Removal

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to the "INTERIOR ")

  3. Disconnect the curtain airbag harness connector (A).

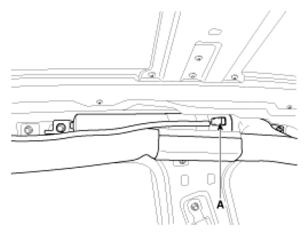

    Fig 1: Identifying Curtain Airbag Harness Connector
    G07272998Courtesy of HYUNDAI MOTOR CO.
  4. After loosening the mounting bolts remove the curtain airbag.

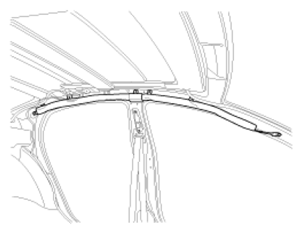

    Fig 2: Identifying Curtain Airbag
    G07272999Courtesy of HYUNDAI MOTOR CO.
