Power Circuit Inspection

IG "OFF" and disconnect the main relay.
IG "ON"
Measure the voltage between power supply terminals of main relay harness connector and chassis ground.
Specification: Approx. B+

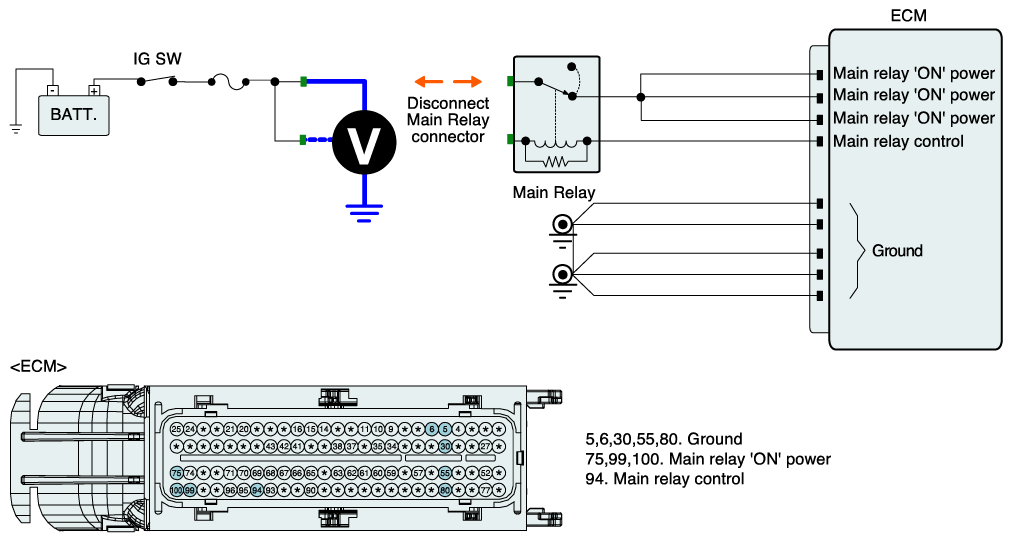

Fig 1: Measuring Voltage Between Power Supply Terminals Of Main Relay Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is the measured voltage within specification?
YES
- Go to "CONTROL CIRCUIT INSPECTION " procedure.
NO
- Check the fuse between battery and main relay.
- Repair open or short to ground in power harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
