Power Circuit Inspection

  1. IG "OFF" and disconnect the P/S pressure sensor connector.
  2. IG "ON"
  3. Measure the voltage between power terminal of P/S pressure sensor harness connector and chassis ground.

    Specification:  Approx. 5V

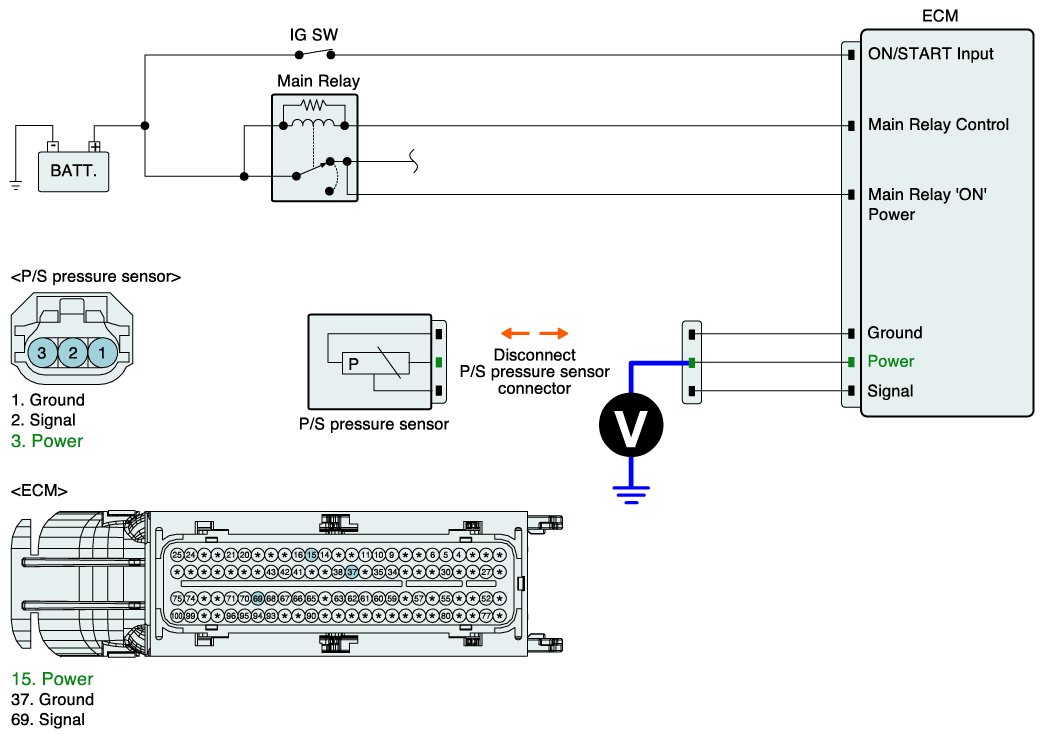

    Fig 1: Measuring Voltage Between Power Terminal Of P/S Pressure Sensor Harness Connector And Chassis Ground
    G07252083Courtesy of HYUNDAI MOTOR CO.
  4. Is the measured voltage within specification?

    YES

    NO
