Signal Waveform & Data

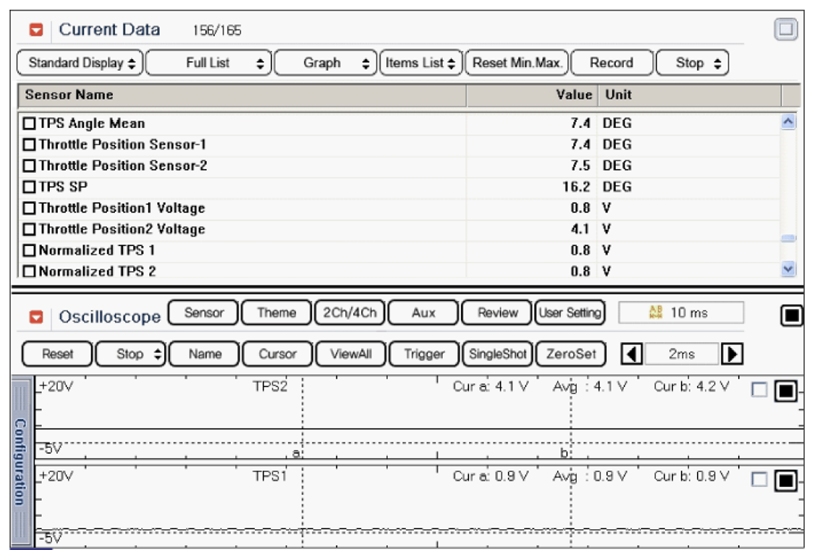

Fig 1: Normal Data Of TPS1 & TPS2 With No Accel Pedal Depressed Under IG ON Condition
G07251311Courtesy of HYUNDAI MOTOR CO.

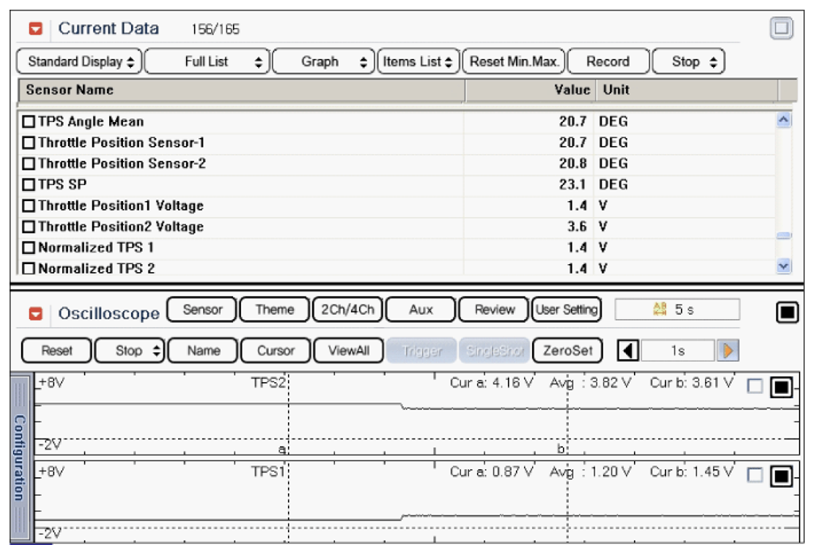

Fig 2: Normal Data Of TPS1 & TPS2 With Accel Pedal Depressed Under IG ON Condition
G07251312Courtesy of HYUNDAI MOTOR CO.

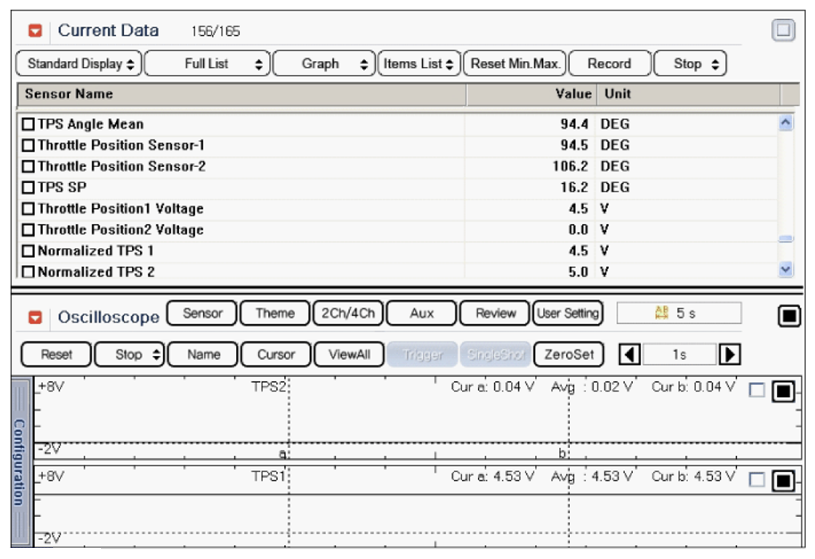

Fig 3: Normal Data Of TPS1 & TPS2 Under Open Condition
G07251313Courtesy of HYUNDAI MOTOR CO.
