Engine Control System Diagnosis (1 Of 3)
>>
DTC P0111: Intake Air Temperature Sensor 1 Circuit Range/Performance
>>
General Information
>>
Component Location
Component Location

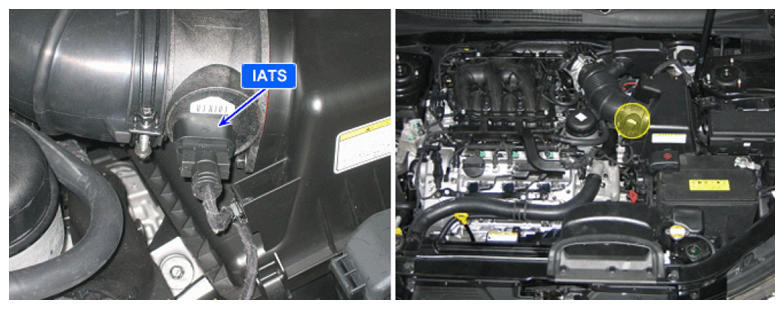

Fig 1: Identifying Intake Air Temperature Sensor Location
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
