Components and Components Location: Components

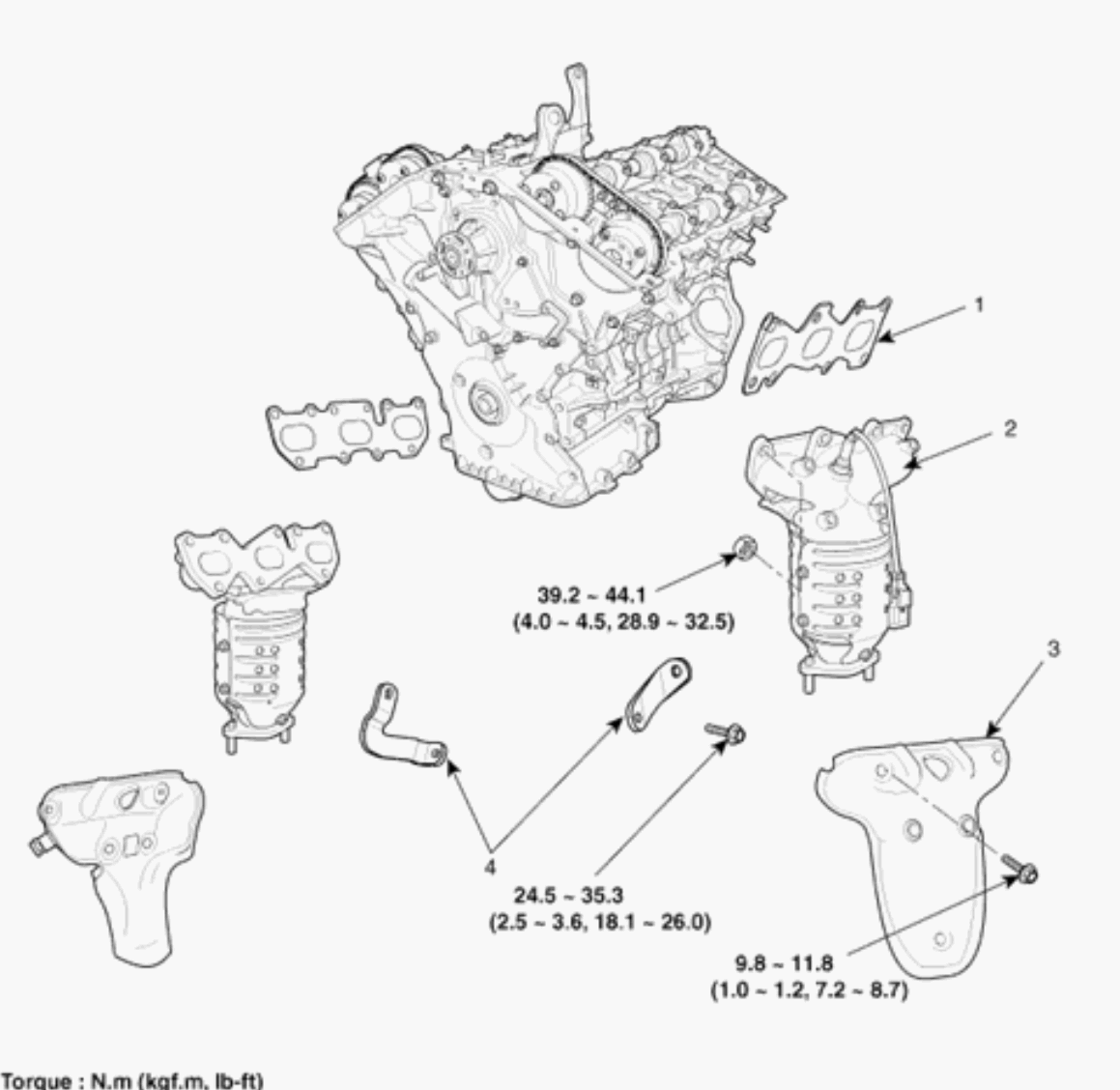

Fig 1: Exhaust Manifold And Catalytic Converter Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR CO.

CALLOUTS FOR EXHAUST MANIFOLD GRAPHIC

1	Gasket
2	Exhaust manifold
3	Heat protector
4	Exhaust manifold stay
