Signal Waveform

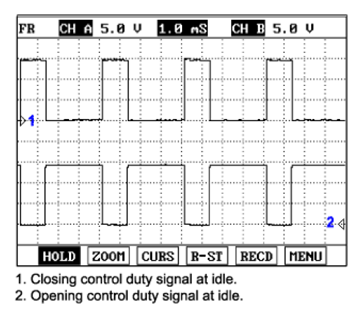

Fig 1: Idle Speed Control Actuator Signal Waveform
G06881855Courtesy of HYUNDAI MOTOR CO.
  1. Closing control duty signal at idle
  2. Opening control duty signal at idle
