Ground Circuit Inspection

  1. IG "OFF".
  2. Disconnect Fuel Level Sensor connector.
  3. IG "ON".
  4. Measure the voltage between terminal 4 of Fuel Level Sensor harness connector and ground. (A)

    Measure the voltage between terminal 1 and 4 of Fuel Level Sensor harness connector. (B)

    1. Specification : "A" - "B" = Below 200 mV

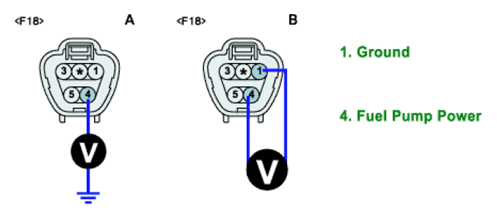

      Fig 1: Measuring Voltage Between Terminal 4 Of Fuel Level Sensor Harness Connector And Ground
      G06881814Courtesy of HYUNDAI MOTOR CO.
  5. Is the measured voltage within specification?

    YES

    1. Go to "COMPONENT INSPECTION " procedure.

    NO

    1. Repair Open in ground circuit and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
