Component Inspection

1. Specification:
   TEMPERATURE RESISTANCE SPECIFICATION CHART



   Temperature [°C]	Resistance [Ω]
   20	14.5 ± 0.7

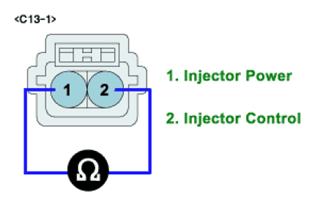

   Fig 1: Measuring Resistance Between Terminal 1 And 2 Of Injector Connector (Component Side)

   Courtesy of HYUNDAI MOTOR CO.

YES

1. Substitute with a known - good ECM and check for proper operation.

   If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

1. Substitute with a known - good injector and check for proper operation.

   If the problem is corrected, replace injector and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
