Signal Waveform

Fig 1: HO2S (S1) And HO2S (S2) Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

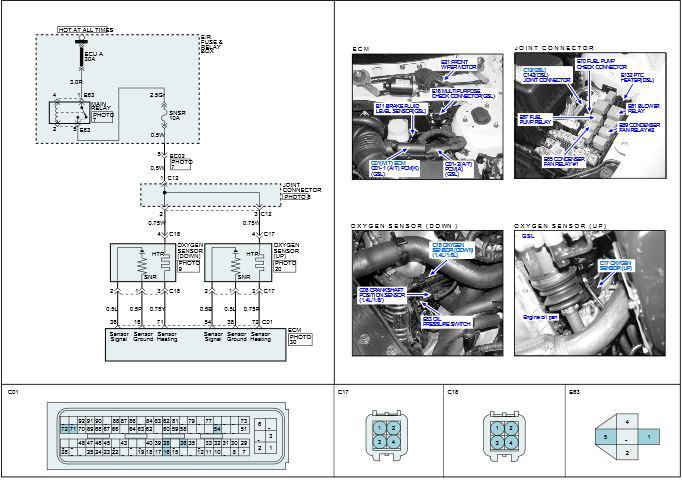

The HO2S requires a minimum temperature to provide a closed loop fuel control system. So the HO2S contains a heater element to reduce its warm-up time and ensure its performance during all driving conditions. The HO2S heater is controlled ON after engine start except for Cold condition and high speed acceleration. The ECM controls this heater element by duty cycle. The main relay supplies voltage to the heater and the ECM provides a ground circuit for activating the heater.
