Schematic Diagram

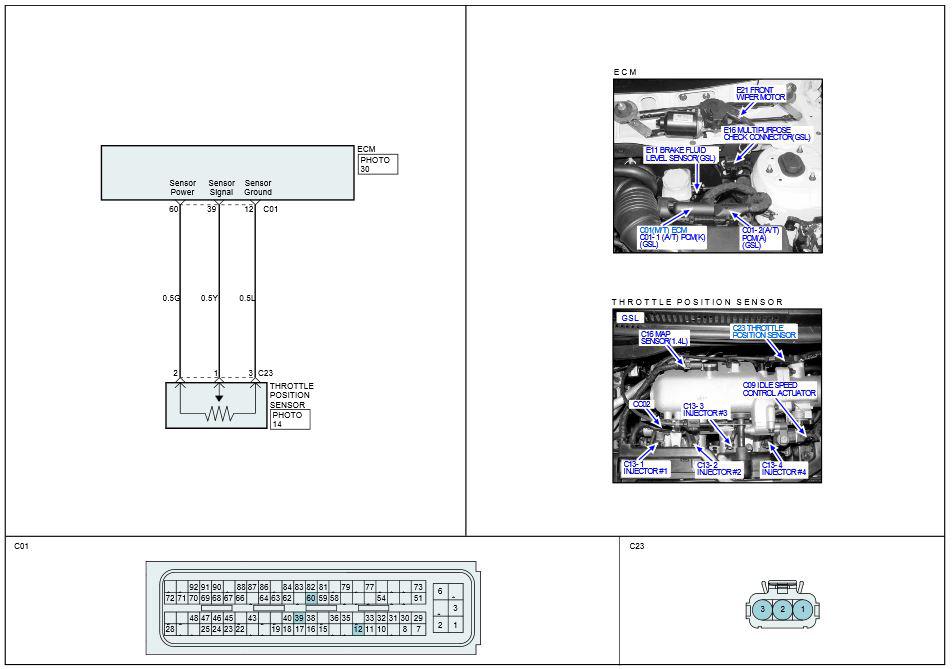

Fig 1: Throttle Position Sensor - Schematic Diagram

G06881344

Courtesy of HYUNDAI MOTOR CO.
