Components Location

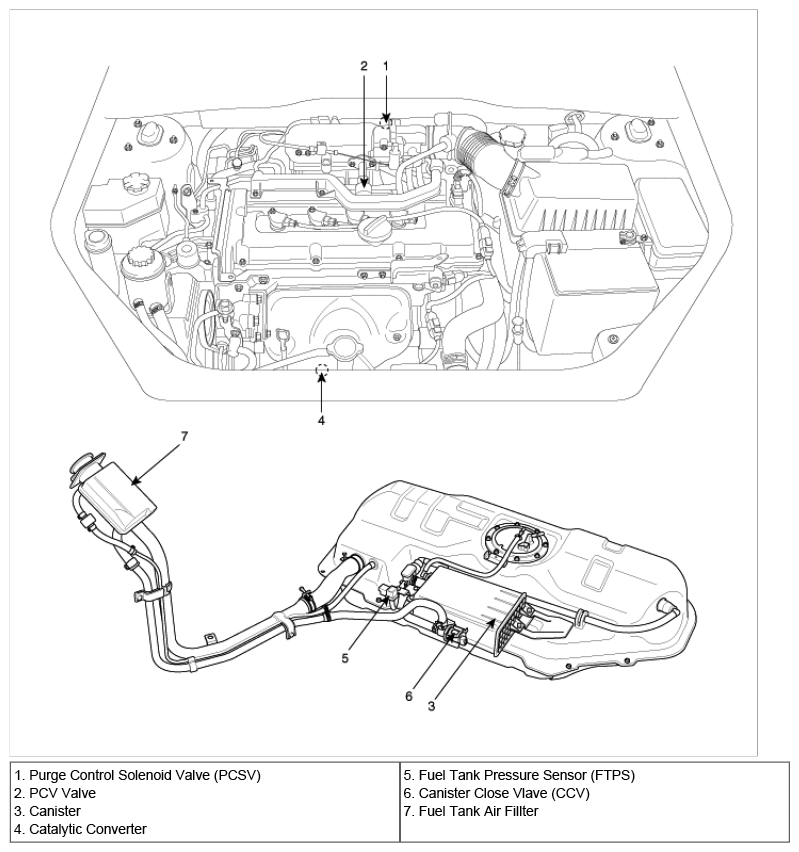

Fig 1: Identifying Emission Control System Components (1 Of 2)
G06879365Courtesy of HYUNDAI MOTOR CO.

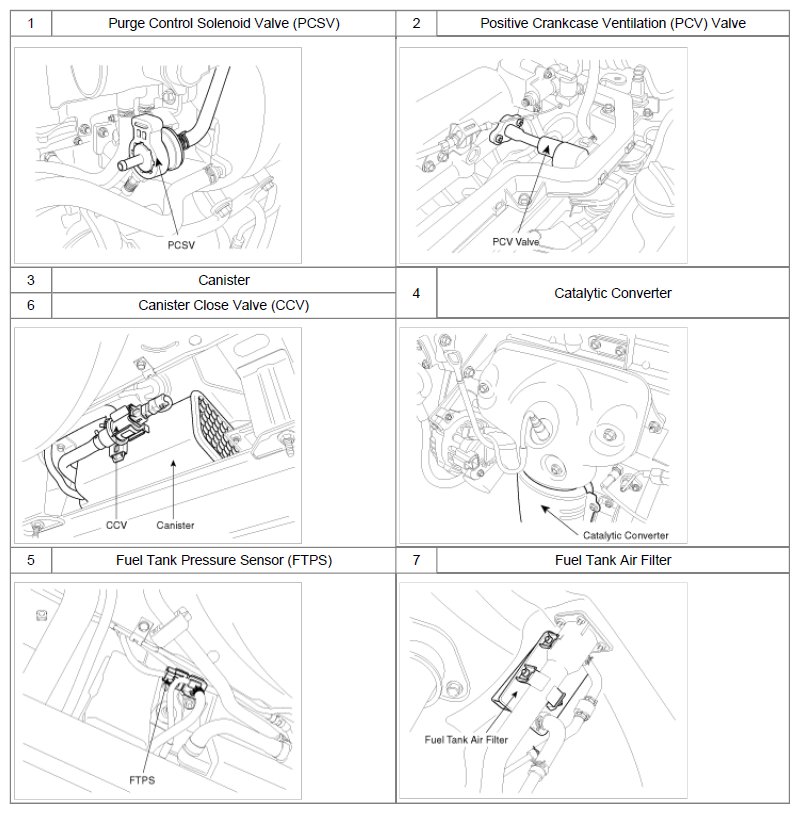

Fig 2: Identifying Emission Control System Components (2 Of 2)
G06879366Courtesy of HYUNDAI MOTOR CO.
