Circuit diagram

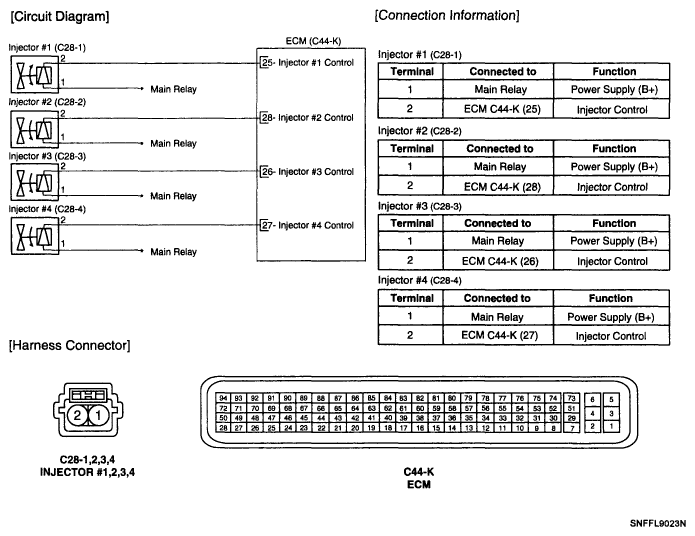

Fig 1: Identifying ECM And Injector Connector Terminal

G06107517

Courtesy of HYUNDAI MOTOR CO.
