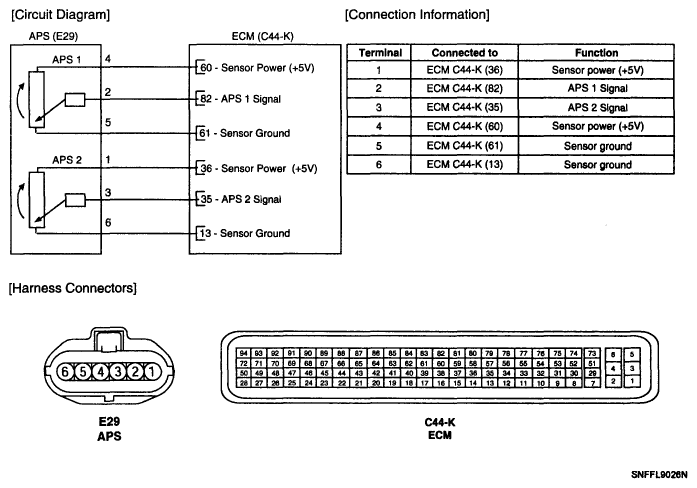

Home >> Hyundai >> 2010 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (G4KE - GSL 2.4)) >> Accelerator Position Sensor (APS) >> Circuit diagram
