Scan Tool Data Analysis

Check DTC
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions. (Refer to DTC DETECTING CONDITION .)

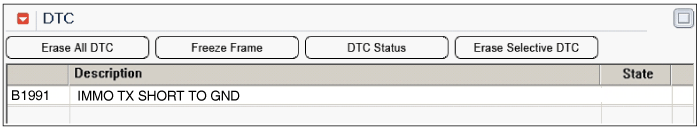

  Fig 1: Scan Tool Display - IMMO TX SHORT TO GND
  Courtesy of HYUNDAI MOTOR CO.
5. Is the same DTC occurred again?
  YES
  - Go to next procedure.
  NO
  - Fault is intermittent caused by poor contact in PDM's connector or was repaired and PDM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to VERIFICATION OF VEHICLE REPAIR .
Service Data Analysis
1. IG "OFF" and connect GDS.
2. IG "ON" and select "Current Data" menu.
3. Check the service data of SMART KEY HOLDER INSERT SIGNAL.
  Specification : INSERT (When the fob is inserted in the holder.)
4. Is the service data within specifications?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to VERIFICATION OF VEHICLE REPAIR .
  NO
  - Go to next procedure.
