Circuit Diagram

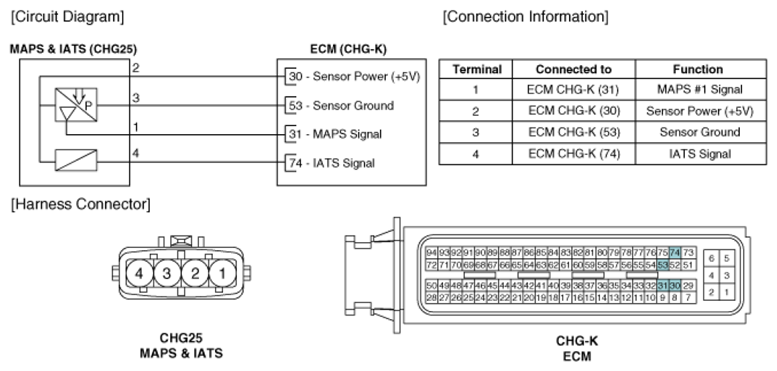

Fig 1: Manifold Absolute Pressure Sensor (MAPS) Circuit Diagram

G06846827

Courtesy of HYUNDAI MOTOR CO.
