Santa Fe GLS, 2.4 B, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L
>>
Intake Air Temperature Sensor (IATS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

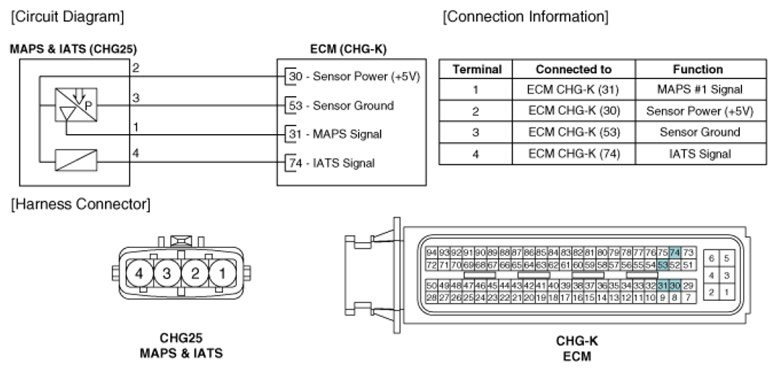

Fig 1: Intake Air Temperature Sensor (IATS) Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
