Home >> Hyundai >> 2010 >> Santa Fe GLS, 2.4 B, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

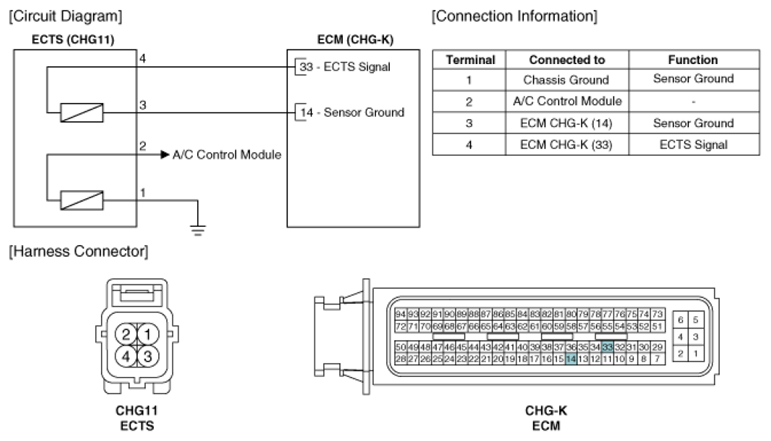

Fig 1: Engine Coolant Temperature Sensor (ECTS) Circuit Diagram

G06846833

Courtesy of HYUNDAI MOTOR CO.
