Circuit Diagram

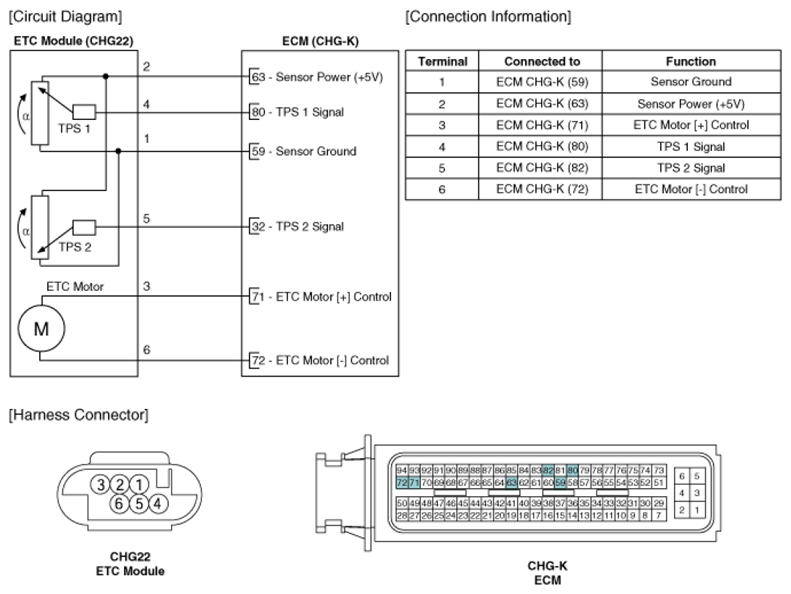

Fig 1: ETC (Electronic Throttle Control) Circuit Diagram

G06846823

Courtesy of HYUNDAI MOTOR CO.
