Monitor Scantool Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "OUTPUT SPEED SENSOR" parameter on the scan tool.
  4. Drive the vehicle.

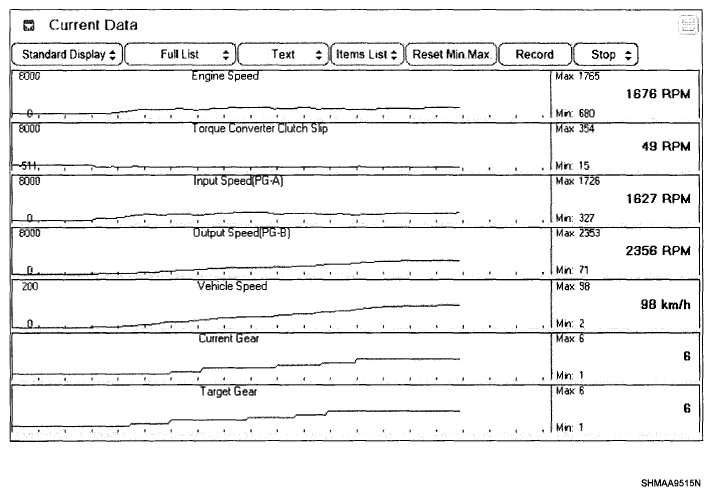

    Fig 1: Scan Tool Display - Input Speed Sensor
    G06106492Courtesy of HYUNDAI MOTOR CO.
  5. Is "Output speed sensor" output value within normal range?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
