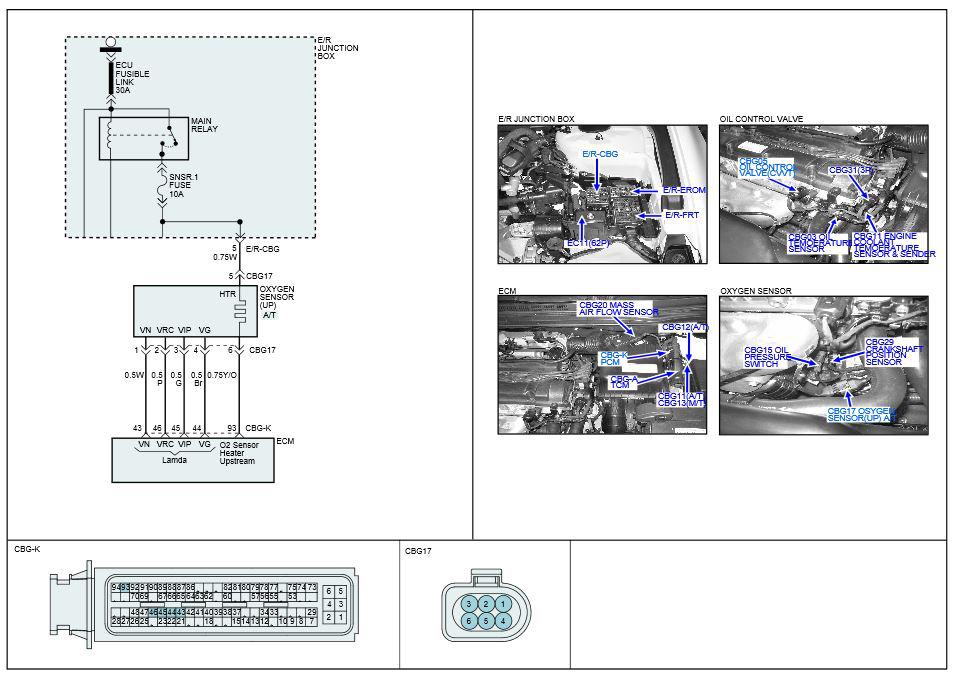

Home >> Hyundai >> 2010 >> Elantra GLS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC P0133: O2 Sensor Circuit Slow Response (Bank 1 Sensor 1) >> General Information >> Schematic Diagram
